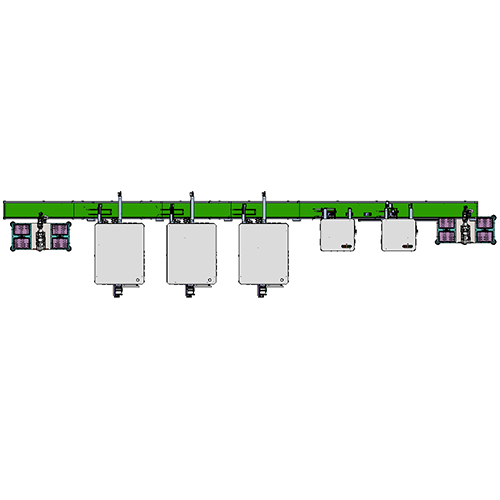

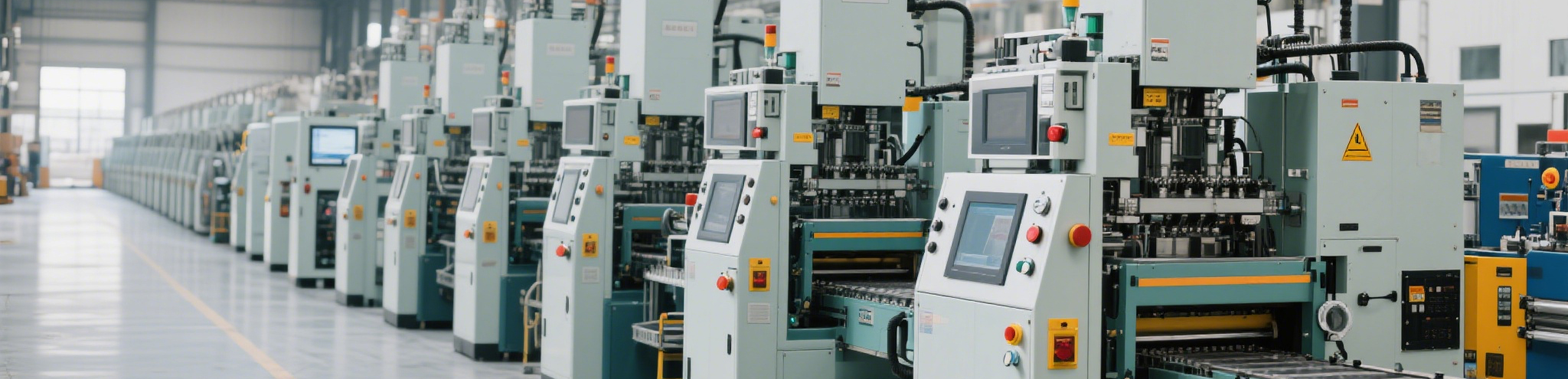

The fully automatic antenna mounting production line belongs to a highly integrated and intelligent advanced manufacturing system, which is specifically designed for the automated assembly, mounting, and testing processes of antennas. Its application scope is extremely wide, covering the fields of communication equipment (such as 5G base stations, mobile phones, and Internet of Things devices, etc.), automotive electronics (such as vehicle-mounted antennas), and aerospace, etc. This production line can greatly improve production efficiency, ensure mounting accuracy, and guarantee product consistency. The following provides you with a detailed introduction to the core components and key technologies of this production line:

1. Core Components of the Production Line

Material Handling System

Automatic Feeding Module: With the help of devices such as vibrating bowls, tape feeders, or storage bins, various antenna components such as radiating patches, substrates, and feed networks are automatically transported.

Visual Positioning System: Equipped with high-precision industrial cameras and combined with advanced AI algorithms, it can accurately position the components and correct the orientation of the components.

Mounting and Assembly System

High-precision Mounting Equipment: Using multi-axis robotic arms or high-speed mounting heads, tiny antenna components such as FPC antennas and ceramic antennas are precisely mounted onto PCBs or substrates.

Welding/Curing Equipment: Through equipment such as reflow soldering, laser welding, or UV curing, a reliable connection between the antenna and the substrate is ensured.

Glue/Conductive Adhesive Coating Process: An automated dispensing machine is used for component fixation and electrical connection (for example, in the LDS antenna process).

Inspection and Testing System

Automated Optical Inspection (AOI): It is used to check whether the mounting position is accurate, whether the solder joint quality meets the standards, and whether there are any appearance defects in the products.

Radio Frequency Performance Testing: Through near-field scanning or in an anechoic chamber environment, key parameters of the antenna such as the voltage standing wave ratio (VSWR), gain, and radiation pattern are tested.

Impedance Testing: An integrated vector network analyzer is used to ensure a good match between the antenna and the circuit.

Automated Logistics System

AGV/RGV Transportation Equipment: Semi-finished products are automatically transferred between different processes to ensure the continuity of the production process.

Robot Sorting System: According to the test results, qualified and unqualified products are sorted.

Central Control System

Manufacturing Execution System (MES): It monitors production data and equipment status in real-time and realizes functions such as order scheduling and product quality traceability.

Industrial Internet of Things (IIoT): It enables interconnection among devices and provides support for remote diagnosis and predictive maintenance.

2. Key Technologies

High-precision Motion Control Technology: It has a positioning accuracy at the micron level, mainly achieved through technologies such as linear motors and servo drives.

Multi-process Compatibility Technology: It can support multiple processes such as LDS (Laser Direct Structuring), FPC flexible board mounting, and millimeter-wave antenna assembly.

Flexible Production Technology: By adopting the Single Minute Exchange of Die (SMED) technology, it can quickly adapt to the production requirements of small batches and multiple varieties.

AI Quality Control Technology: With the help of machine learning technology, the inspection algorithm is optimized, effectively reducing the misjudgment rate.

3. Advantages

Significant Efficiency Improvement: For example, in the SMT process, the mounting speed can reach tens of thousands of points per hour.

Consistency Assurance: It effectively avoids errors caused by manual operations, which is particularly important for the production of millimeter-wave high-frequency antennas.

Obvious Cost Optimization Results: It reduces the dependence on labor and at the same time reduces the defective product rate.

5. Development Trends

Application of Digital Twin Technology: Optimize the production process through virtual commissioning.

Application of Collaborative Robots (Cobot): Achieve human-machine collaboration to complete complex assembly tasks.

Promotion of the Concept of Green Manufacturing: Widely apply energy-saving equipment and environmentally friendly materials.
